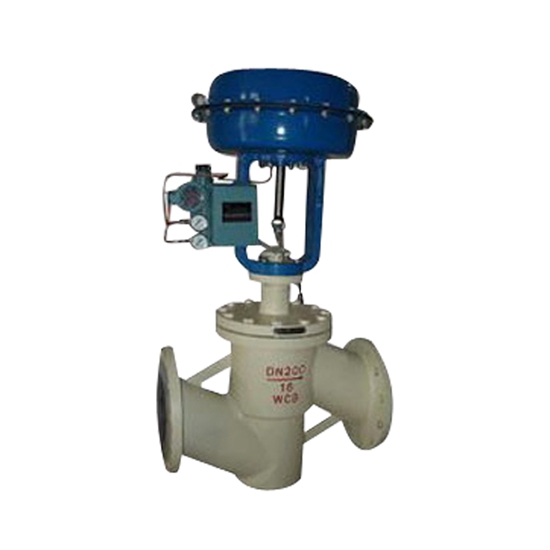

ZMAPF single seat pneumatic fluorine lining valve

關(guān)注次數(shù)：

Summary
ZMAPF pneumatic membrane lining PTFE valve, ZJHPF pneumatic PTFE membrane lining a single seat control valve is a kind of anti corrosion through single seat control valve, body wall components in contact with the fluid and valve are high-pressure injection molding process, lined with corrosion resistance, aging resistance of the fluorinated ethylene propylene (F46), and the use of PTFE ethylene bellows seal. Control is widely used in acid, alkali and other strong corrosive media and toxic, volatile gas, liquid.
Characteristic.
1, corrosion resistance. Almost all capability of medium (including concentrated nitric acid and aqua regia) of corrosion.
2, good sealing performance. The corrugated pipe and packing a double seal, ensure no leakage.
3, a small amount of leakage. Because the valve core, valve seat with the soft sealing, to ensure no leakage.
4, with HA actuators, large output force, compact structure.

Materials of main parts:
The valve body, valve cover: HT200, ZG230-450, ZGlCr18Ni9Ti
The valve, valve seat: 1Cr18Ni9T, division of titanium alloy welding
Soft seal spool: PTFE
Packing: PTFE, graphite, stainless steel bellows
Gasket: gasket asbestos rubber plate, 1Cr18Ni9Ti, graphite spiral wound
Film cover: A3
Corrugated diaphragm: nitrile rubber reinforcing polyester fabric
Spring: 60Si2Mn
Valve rod, push rod: 2Cr13, 1Cr18Ni9Ti

Main technical parameters：

Nominal diameter	G3/4"									20								25	32	40		50	65		80	100		150
Seat diameter	3		4	5	6		7	8		10		12		15		20		26	32	40		50	65		80	100		150
KvValue	0.08		0.12	0.20	0.32		0.50	0.80		1.2		2.0		3.2		5.0		8	12	20		32	50		70	100		240
Rated stroke	10																	16		25			40					60
Supply pressure		Spring range				To allow pressure
						Nominal diameter
						G3/4"			20		25		32		40		50		65		80			100			150
1.4		0.2～1.0				16			16		8		5		5		3		2.5		2			1.2			0.8
4.0		0.8～2.4				16			16		16		12		11		7		6.5		4.5			2.8			2.0

Size and shape

Nominal diameter	G3/4"	20	25	32	40	50	65	80	100	150
L	116	180	185	200	220	250	275	300	350	480
A	267	267	267	267	267	267	350	350	350	470
H	401	445	485	495	523	532	697	699	699	817
H1	50	65	70	80	71	88	102	140	170	190

Ordering instructions: the type and name of 1 products of 2 nominal diameter (DN) of 3 nominal pressure (PN) 4 of the rated flow coefficient KV 5 body and valve assembly 6 is fixed material flow characteristics of 7 suitable temperature and medium 8 machine mode of action (power, power off) and the input signal of 9 is with accessories (operator the servo amplifier, etc.) 10 other special requirements
